The short answer
An electric heated floor costs about $8 to $15 per square foot installed before the new flooring, according to HomeGuide. Angi puts a 60 square foot primary bath at $700 to $1,800 and says most homeowners pay around $1,800 for a heated bathroom floor. Running it is cheaper than buying it: at New Jersey's 24.61 cents per kWh, a 60 sq ft floor costs about 19 cents an hour at full power.
- Every price on this page is a published national range, not a Foreverbuilt quote. The tile and tile labor are usually extra.
- The cheapest time to add heat is during a tile job. HomeGuide says adding it to an existing bathroom costs 50 to 80 percent more than in new construction.
- New Jersey electricity costs about 35 percent more than the U.S. average (24.61 vs. 18.16 cents in August 2026), so national "pennies a day" running costs run low here.
- WarmlyYours says the mat itself can be laid without an electrician, but the final electrical connection needs a licensed pro, and in New Jersey the circuit needs a permit.
Heated Floor Cost by Room in 2026
Heated floors are priced by the square foot you actually heat, not the whole room. You do not heat the floor under the vanity, the tub or the toilet, so WarmlyYours notes that a 100 square foot bathroom may have only 55 to 65 square feet of heated floor. Three published guides price the heating system like this:
| Room | Angi | WarmlyYours | HomeGuide |
|---|---|---|---|
| Powder room | $150 – $500 (20 sq ft) | $400 – $700 (15 – 25 sq ft) | $200 – $500 (20 – 30 sq ft) |
| Full or guest bath | $400 – $1,000 (40 sq ft) | $600 – $1,100 (40 – 60 sq ft) | $300 – $800 (40 – 50 sq ft) |
| Primary bath | $700 – $1,800 (60 sq ft) | $900 – $1,700 (60 – 100 sq ft) | $500 – $2,400 (60 – 160 sq ft) |
| Kitchen or large bath | $1,200 – $3,000 (100 sq ft) | $1,100 – $2,400 (80 – 150 sq ft) | Not listed |
Read the columns as three opinions on the same job, not one price. Angi's figures are its national cost data (updated May 3, 2026). WarmlyYours makes and sells floor-heating systems, so its "estimated total installed" column (March 9, 2026) reflects its own products. HomeGuide's column is the heating system alone, without new flooring, from its June 2024 guide; with new flooring it lists $250 to $1,700 for a half bath and $500 to $2,800 for a full bath.
What that means in Mercer and Bucks County
None of these guides publishes a New Jersey number. The thermostat and the circuit cost about the same for a small floor as a large one, and Central New Jersey and the Bucks County towns across the river sit between the New York and Philadelphia labor markets, so a careful budget uses the middle to top of each range. HomeGuide also notes that some contractors charge a $500 to $600 minimum for a radiant floor job, which is why a powder room can cost almost as much as a full bath.
What Is in the Price: A Worked 60 Sq Ft Bathroom
A heated floor quote has three parts beyond the tile: the heating element, the thermostat, and the electrical circuit. For a primary bathroom with 60 square feet of open floor, the published ranges add up like this. Each line is a market range from the cited source; the total is our arithmetic, and an installer's measured quote replaces all of it.
| Line item | Market range | Source |
|---|---|---|
| Heating mat or cable (60 sq ft at $6 – $12) | $360 – $720 | WarmlyYours |
| Floor thermostat, installed | $140 – $350 | HomeGuide |
| Dedicated circuit, installed | $250 – $900 | HomeGuide |
| Estimated total, heat only | $750 – $1,970 | Our arithmetic |
That lines up with Angi's $700 to $1,800 for a 60 square foot bath. What it leaves out:
- Tile labor. WarmlyYours puts tile installation at $5 to $15 per square foot, which you pay with or without heat. On a remodel the tile is already in the budget.
- A smart thermostat. WarmlyYours puts a basic programmable thermostat at $80 to $150 and a Wi-Fi model at $150 to $250; Angi lists smart controls at $100 to $300 extra.
- Panel work. HomeGuide's $250 to $900 is for a dedicated circuit. If your panel has no room for another breaker, the electrical line grows.
- Insulation. Angi lists insulating underlayment at $1 to $3 per square foot and says it boosts energy efficiency. Ask about it for a floor over a garage, a crawl space or a concrete slab.
- Permit fees. Your township sets them. HomeGuide reports $50 to $800 nationally; Angi reports $50 to $250.
Why to Decide Before the Tile Goes Down
Floor heat is a tile-job decision, not a winter add-on. The heating cable is embedded directly in the tile mortar, per WarmlyYours, or set into an uncoupling membrane under the tile, as with Schluter DITRA-HEAT. Once the tile is set, the only way to add it is to take the floor up. HomeGuide puts radiant heat in an existing bathroom at 50 to 80 percent more than in new construction, because the old floor has to be removed.
So if a bathroom or kitchen tile floor is on your list for this winter or spring, settle the heat question when you pick the tile: the system, the thermostat location on the wall, and whether the panel has room for the circuit. Those three answers change the electrical rough-in, which happens before the tile setter arrives.
What a Heated Floor Costs to Run in New Jersey and Pennsylvania
Running cost is simple arithmetic: heated square feet times the system's watts per square foot, times hours of use, times your electricity rate. National guides use the national rate. In August 2026, the U.S. Energy Information Administration reported an average residential rate of 24.61 cents per kWh in New Jersey, 21.77 cents in Pennsylvania, and 18.16 cents for the U.S.
For the wattage we used a real spec sheet: Schluter's DITRA-HEAT-E-HK cable puts out 12.7 watts per square foot at its regular spacing. The table assumes the floor runs at full power 4 hours a day for 30 days:
| Heated area | Draw | NJ per hour | NJ per month | PA per month | U.S. per month |
|---|---|---|---|---|---|
| 20 sq ft (powder room) | 254 W | $0.06 | $7.50 | $6.64 | $5.54 |
| 40 sq ft (guest bath) | 508 W | $0.13 | $15.00 | $13.27 | $11.07 |
| 60 sq ft (primary bath) | 762 W | $0.19 | $22.50 | $19.91 | $16.61 |
| 100 sq ft (kitchen walkway) | 1,270 W | $0.31 | $37.51 | $33.18 | $27.68 |
- These are ceilings. The floor sensor tells the thermostat to cycle the cable once the floor is warm, so a real bill should come in under the table. WarmlyYours' own estimate for a 60 sq ft bath at 4 hours a day is $14 to $20 a month at the national rate.
- New Jersey costs about a third more to run than the national guides show, because the rate is about 35 percent higher. A 60 sq ft floor costs about 19 cents an hour here against about 14 cents at the U.S. average.
- Schedule it. A programmable thermostat that warms the floor for an hour or two in the morning and evening cuts the hours, which is the biggest lever you control.
Is it cheaper than your furnace? A heated bathroom floor is a comfort system for one room, not a replacement for the house's heat, and the guides above treat it that way. HomeGuide says a heated bathroom floor timed to your schedule does not typically cause a significant increase in an electric bill.
Electric vs. Hydronic, and Whole-House Radiant

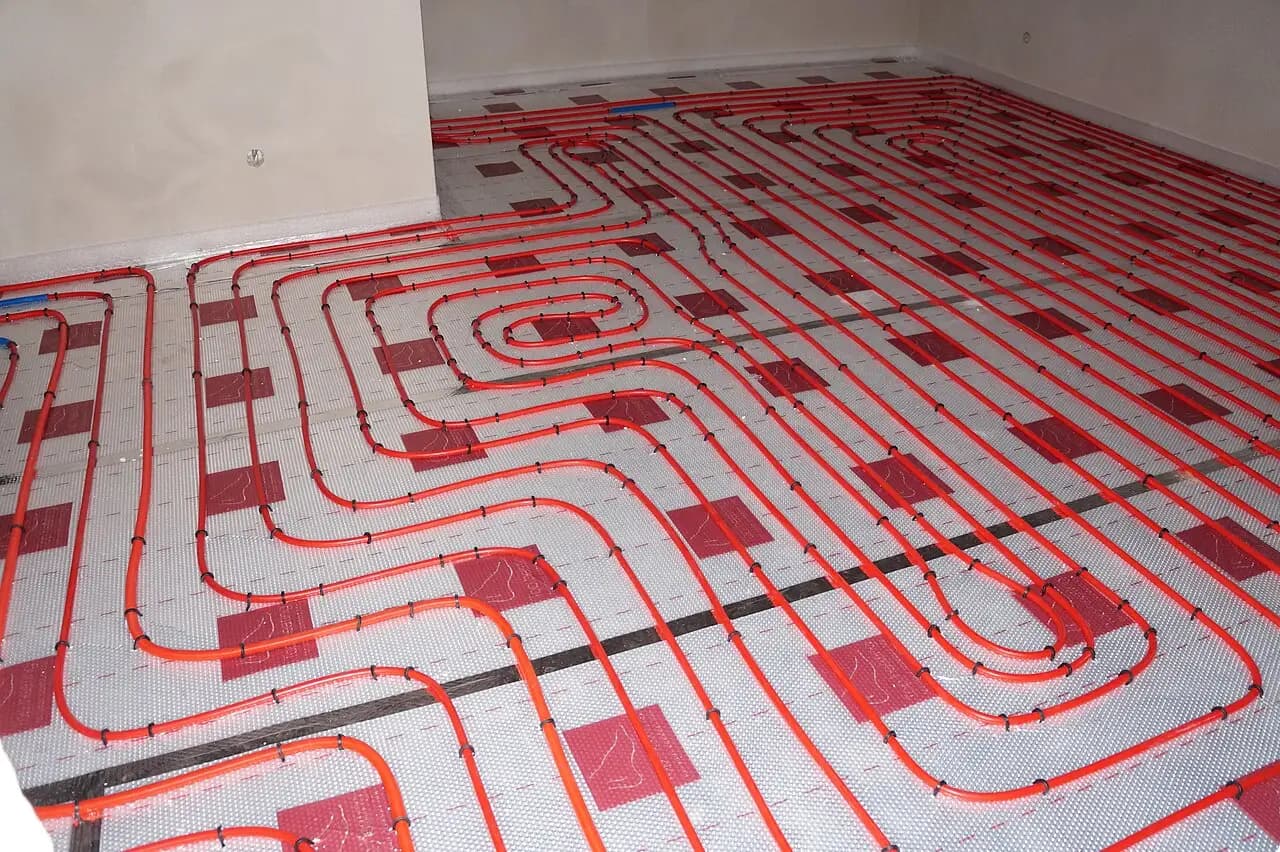

There are two kinds of radiant floor. Electric floors use a resistance cable under the tile and need only a circuit. Hydronic floors circulate hot water from a boiler or water heater through tubing, which makes them a plumbing and heating-system job.
| Electric | Hydronic | |
|---|---|---|
| Installed, bathroom (HomeGuide) | $8 – $15 per sq ft | $7 – $17 per sq ft, plus $600 – $3,100 for a dedicated water heater |
| Installed, any room (WarmlyYours) | $6 – $17 per sq ft | $12 – $30 per sq ft, plus $3,000 – $10,000+ for a boiler |
| Who installs it | Tile setter lays it; electrician connects it | Plumber or heating contractor |
| Best fit | One room: a bath, a kitchen, an entry | Whole house or large areas, often new construction |
HomeGuide says most pros recommend electric for a small area like a bathroom because it is straightforward to install, while hydronic costs more to install and less to run. WarmlyYours makes electric systems, so weigh its comparison with that in mind.
How much does radiant floor heating cost for a 1,200 sq ft house?
Applying WarmlyYours' published installed ranges to 1,200 square feet gives about $7,200 to $20,400 for an electric system or $14,400 to $36,000 for hydronic, plus the boiler. That is our arithmetic on a manufacturer's ranges, and a whole-house system is priced only after an HVAC contractor runs a heat-loss calculation for your house. If you are searching "radiant floor heating installation" for the whole house, you want a heating contractor, not a tile job.
Which Floors Work Over Heat
The floor you put on top decides how well the heat comes through, and which system you can use.
- Porcelain, ceramic and stone tile: the best conductors of radiant heat, and they need no special system (WarmlyYours). HomeGuide calls ceramic and porcelain popular choices for how well they conduct and hold heat. Our porcelain vs. ceramic tile guide compares the two.

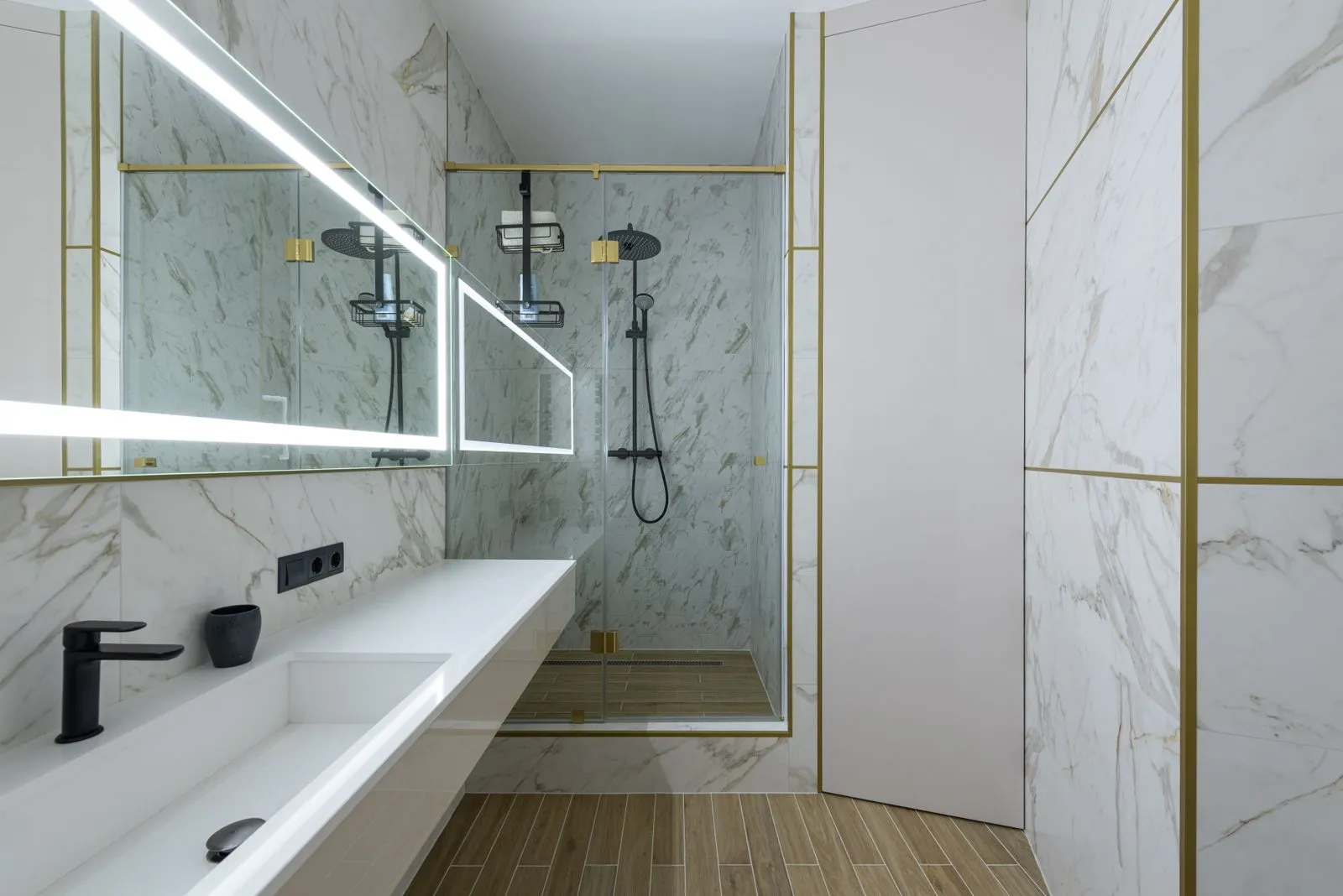

- Wood-look porcelain: the usual answer when you want the look of wood in a kitchen or bath with heat under it. See tile vs. hardwood in the kitchen.
- Hardwood and laminate: possible, but WarmlyYours says they need lower-wattage systems to prevent warping.
- Vinyl and linoleum: HomeGuide warns that not all products are suitable. Check that the flooring maker rates your exact product, and its adhesive, for radiant heat.
- Carpet: generally not recommended (WarmlyYours).
Our flooring and tile pages show what the Ewing showroom carries, so you can pick the floor and ask about heat in the same visit.
New Jersey Permits and Who Wires It
The permit
New Jersey's Uniform Construction Code makes it unlawful to install or alter equipment the code regulates without first applying to the construction official and obtaining the required permit (N.J.A.C. 5:23-2.14). The ordinary electrical maintenance that needs no permit is limited to things like replacing a receptacle, switch or light fixture with a like item (N.J.A.C. 5:23-2.7), and a new heated-floor circuit is not on that list. Some small electrical jobs in one- and two-family homes count as "minor work" under N.J.A.C. 5:23-2.17A, which still requires notice to the construction office. Your township's electrical subcode official decides which applies; ask before the rough-in.

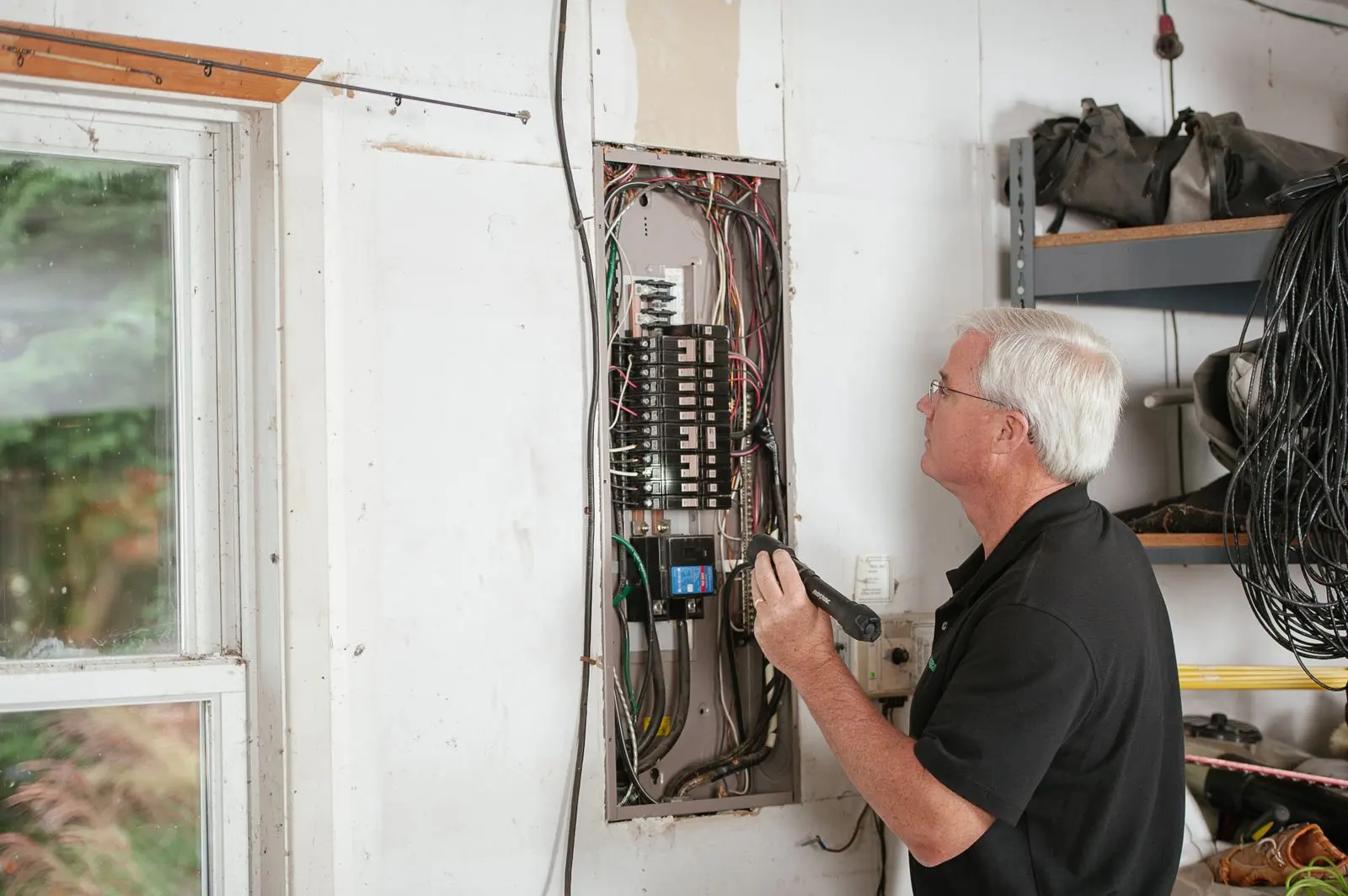

Who wires it
In New Jersey, a business doing electrical contracting needs a business permit with a licensed electrical contractor responsible for the work (N.J.S.A. 45:5A-9). The law exempts work a homeowner does on a dwelling occupied solely as a residence for themselves or their immediate family (N.J.S.A. 45:5A-18(n)), but that exemption is from the contractor license, not from the construction permit and inspection.
Ground-fault protection is part of the system. Schluter's DITRA-HEAT thermostats, for example, are listed with built-in GFCI protection (UL 943). Ask your electrician how your system will be protected and where the thermostat goes: HomeGuide advises mounting it at eye level, not switch level.
Is a Heated Floor Worth It?
It is a comfort upgrade, so the honest answer is "it depends on the room." In a r/HomeImprovement thread a homeowner in northern Virginia asked whether $2,500 extra for heat on an $11,000 bathroom remodel was worth it. One reply estimated the materials at about $500 and said the quote looked padded unless a new circuit had to be run from the panel; another said they paid $2,800 for the same system in a large primary bath over a garage, where the floor gets much colder. Those are homeowner reports, not a price survey, but they point to the same questions to ask:
- Is the floor cold to begin with? A bath over a garage, a basement, a crawl space or a slab benefits most.
- Is the tile coming up anyway? If yes, heat is a line item. If no, HomeGuide puts the retrofit at 50 to 80 percent more.
- Does the quote break out the circuit? The electrical line is where quotes differ the most. Ask whether the price includes a new circuit from the panel.
- Will you use it? A floor scheduled for mornings and evenings costs little to run, even at New Jersey rates.
Systems, Lifespan and the Questions to Ask
There is no single best system. There are three common types, and the floor and room shape pick between them:

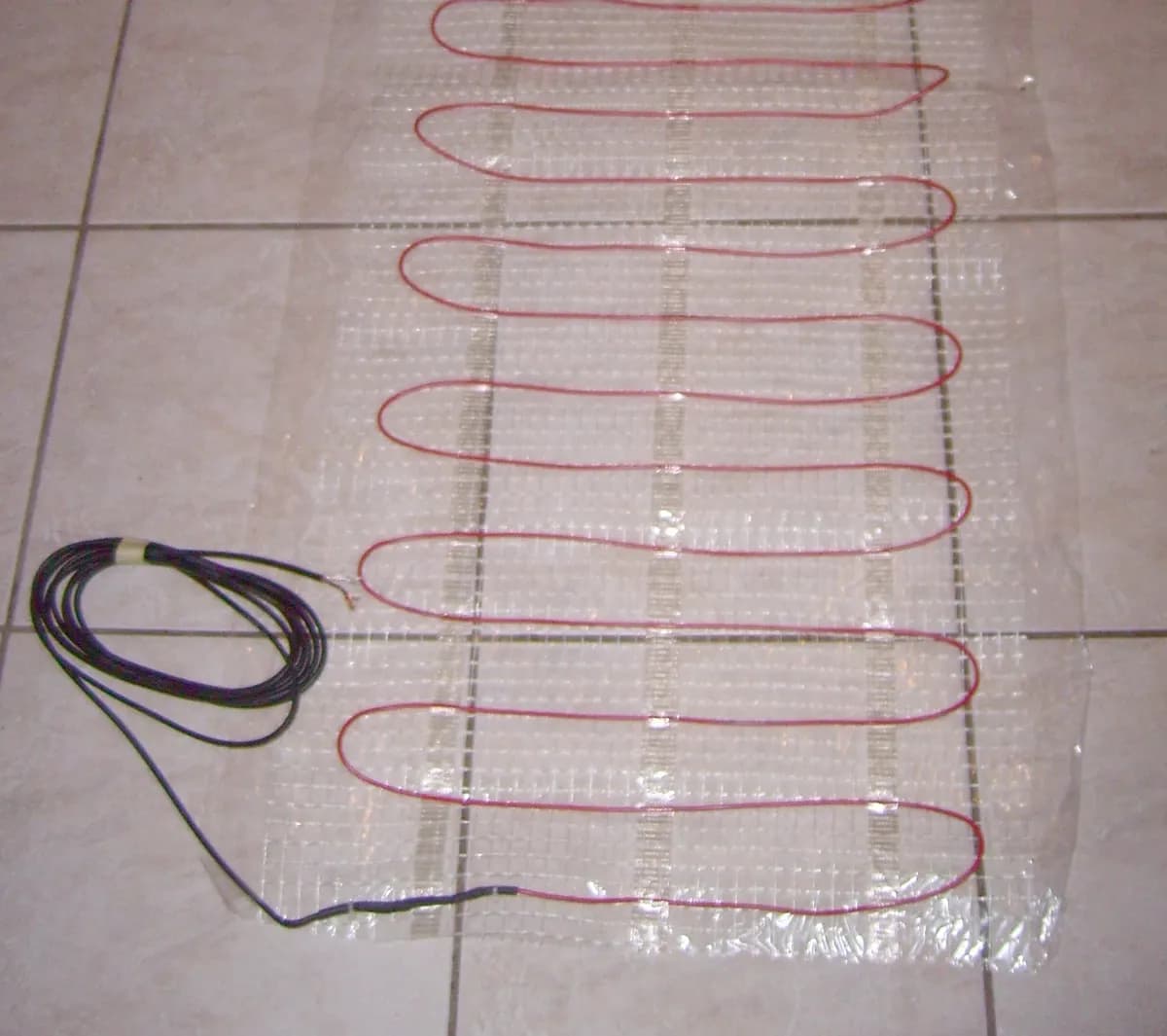

- Cable-on-mesh mats roll out quickly in simple rectangular rooms and are set in thinset under tile.
- Loose cable in an uncoupling membrane, such as Schluter DITRA-HEAT, routes around odd shapes, and the membrane doubles as the tile's uncoupling and waterproofing layer.
- Film or low-wattage mats go under floating floors such as laminate, per WarmlyYours.
How long does it last? A cable buried in mortar has no moving parts, and manufacturers back it for years: WarmlyYours, for example, gives its systems a 25-year warranty. Before the tile goes down, ask for the cable's test readings and take a photo of the layout, so you know where the cable runs later.
Questions to ask before you say yes
- Which system and thermostat, and what is the warranty?
- How many square feet will actually be heated?
- Does the price include a new circuit, and is there room in the panel?
- Who pulls the electrical permit, and who is the licensed electrician?
- Is the floor I picked rated for radiant heat?
- Is insulation needed under the heat in this room?
Questions Homeowners Ask About Heated Floor Costs
How much does a heated floor cost?
An electric heated floor costs about $8 to $15 per square foot installed before the new flooring, according to HomeGuide, and Angi puts heated bathroom floors at $8 to $20 per square foot with most homeowners paying around $1,800. By room, Angi lists about $150 to $500 for a 20 square foot powder room, $700 to $1,800 for a 60 square foot primary bath, and $1,200 to $3,000 for 100 square feet. These are national market ranges, not a Foreverbuilt quote, and the tile and tile labor are usually extra.
What is the average cost of installing a heated bathroom floor?
Angi reports an average of about $1,800, with most heated bathroom floors between $600 and $4,600. HomeGuide puts a typical bathroom at $500 to $2,800 including the heating and new flooring, and notes some contractors charge a $500 to $600 minimum for the job. A worked 60 square foot bathroom using published line items (mat or cable, thermostat, dedicated circuit) comes to about $750 to $1,970 before tile.
Is heated flooring expensive to run in New Jersey?
Less than most people expect, but more than national guides show. New Jersey homes paid 24.61 cents per kWh in August 2026 against a U.S. average of 18.16 cents (EIA). A 60 square foot heated bathroom floor using a cable rated 12.7 watts per square foot draws about 762 watts, so it costs about 19 cents an hour at full power in New Jersey, or about $22.50 a month if it ran flat out 4 hours a day. The thermostat cycles the heat once the floor is warm, so a real bill should be lower than that ceiling.
How much does a heated floor add to an electric bill?
Use the room's heated square footage, the system's watts per square foot, your hours of use and your rate. At New Jersey's 24.61 cents per kWh and 4 hours a day at full power, the ceiling works out to about $7.50 a month for a 20 square foot powder room, $15 for 40 square feet, $22.50 for 60 square feet and $37.50 for 100 square feet. At Pennsylvania's 21.77 cents the same floors cost about 12 percent less. A programmable thermostat that runs the floor only in the morning and evening keeps it near the low end.
Is it worth getting heated floors?
It depends on the room and on how much a cold floor bothers you. Heat under tile is cheapest to add when the tile is already being replaced: HomeGuide says installing radiant heat in an existing bathroom costs 50 to 80 percent more than in new construction, because the old floor has to come out. Bathrooms over a garage, basement or crawl space, and kitchens where you stand on tile for long stretches, are the usual candidates. In one Reddit thread, a homeowner quoted $2,500 extra for heat on an $11,000 bath remodel; the replies split between people who put heat in every bathroom they remodel and people who called it an unneeded luxury.
How much does radiant floor heating cost for a 1,200 sq ft house?
Whole-house radiant heat is a different project from a heated bathroom floor. Using WarmlyYours' published installed ranges, 1,200 square feet works out to about $7,200 to $20,400 for an electric system ($6 to $17 per square foot) or $14,400 to $36,000 for a hydronic, hot-water system ($12 to $30 per square foot) plus $3,000 to $10,000 or more for a boiler. WarmlyYours sells electric systems, so read its comparison with that in mind. A whole-house system is a heating-system design job for an HVAC contractor, and it needs a heat-loss calculation for your house before anyone can price it.
Is electric or hydronic floor heating cheaper?
For one room, electric is cheaper to install: it needs no boiler and no plumber. HomeGuide puts electric at $8 to $15 per square foot installed and hydronic at $7 to $17 for a bathroom, plus $600 to $3,100 for a dedicated water heater. Hydronic costs less per hour to run and makes sense when a whole house or a large area is heated from a boiler. Most single-room bathroom and kitchen floors are electric.
What floors can go over radiant heat?
WarmlyYours calls tile and stone the best conductors of radiant heat and says hardwood and laminate need lower-wattage systems to prevent warping and that carpet is generally not recommended. HomeGuide warns that not all vinyl and linoleum products are suitable, so check that the flooring manufacturer rates your exact product for radiant heat.
How long does floor heating last?
An electric heating cable buried in thinset has no moving parts, and manufacturers back it for a long time: WarmlyYours, for example, gives a 25-year warranty on its systems. Ask your installer which system and warranty they use, and keep the cable test readings and a photo of the layout before the tile goes down.
What is the best electric floor heating system?
There is no single best system; there are three main types. Cable-on-mesh mats roll out fast in simple rectangular rooms. Loose cable set into an uncoupling membrane, such as Schluter DITRA-HEAT, fits around odd shapes and gives the tile an uncoupling and waterproofing layer. Thin film or low-wattage mats go under floating floors like laminate. Pick by floor type and room shape, then compare the thermostat, the warranty and who will install and wire it.
Do you need a permit to install a heated floor in New Jersey?
For the electrical work, plan on it. New Jersey's Uniform Construction Code makes it unlawful to install equipment the code regulates without first obtaining the required permit (N.J.A.C. 5:23-2.14), and a new heated-floor circuit is not on the ordinary electrical maintenance list in N.J.A.C. 5:23-2.7. Some small electrical jobs count as minor work under N.J.A.C. 5:23-2.17A, which still needs notice to your construction office. Your township's electrical subcode official makes the final call.
Who is allowed to wire a heated floor in New Jersey?
New Jersey requires a business that does electrical contracting to hold a business permit with a licensed electrical contractor responsible for the work (N.J.S.A. 45:5A-9). The law exempts work a person does on a dwelling occupied solely as a residence for themselves or their immediate family (N.J.S.A. 45:5A-18(n)), but the construction code permit and inspection still apply. Ground-fault protection is part of the system: Schluter's floor thermostats, for example, are listed with built-in GFCI protection (UL 943). Ask your electrician how your floor will be protected.
Sources (all opened October 25, 2026)
Every price on this page is a published national range or a manufacturer's figure from the sources below, not a Foreverbuilt price. Running costs and totals marked "our arithmetic" are calculated from those sources.
- Angi, How Much Does a Heated Bathroom Floor Cost?, updated May 3, 2026.
- HomeGuide, How Much Does a Heated Bathroom Floor Cost?, June 3, 2024.
- WarmlyYours, How Much Does Radiant Floor Heating Cost in 2026?, last updated March 9, 2026 (a floor-heating manufacturer).
- Schluter Systems, Floor Warming product item numbers (DITRA-HEAT-E-HK output) and DITRA-HEAT sell sheet (thermostat GFCI listing).
- U.S. Energy Information Administration, Electric Power Monthly, Table 5.6.A, data for August 2026, released October 23, 2026.
- New Jersey Uniform Construction Code, N.J.A.C. 5:23-2.14, 5:23-2.7, and 5:23-2.17A.
- New Jersey Electrical Contractors Licensing Act, N.J.S.A. 45:5A-9 and 45:5A-18.
- r/HomeImprovement homeowner thread (homeowner reports, not a price survey).
